|Product Name:||Outdoor Escalator||Usage:||Supermaket, Subway, Etc.|
|Step Width:||600mm/ 800mm / 1000mm||Rated Speed:||0.5 M/s|
|Inclination:||30 Or 35 Degree||Power Voltage:||380V Or Local Voltage|
|Step Material:||Aluminum Alloy Die-cast||Balustrade:||ST.ST.|
|Handrail Color:||Black Or Other Colors||H.S. Code:||8428400000|

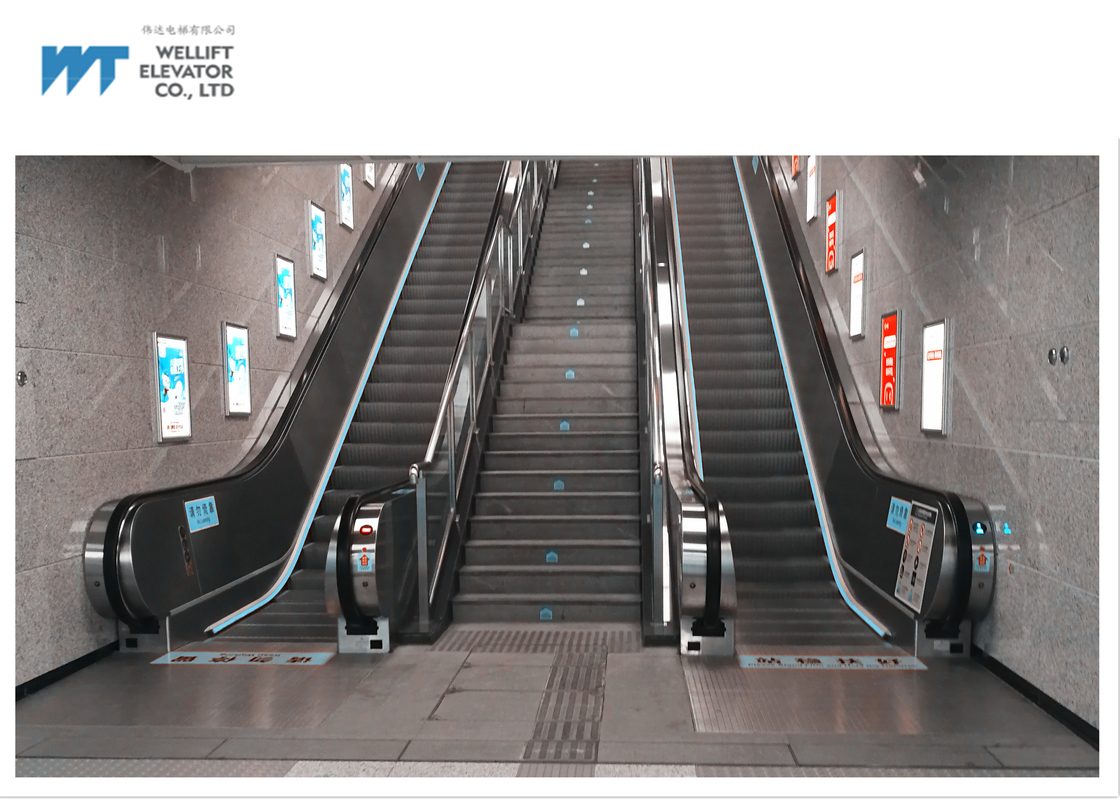

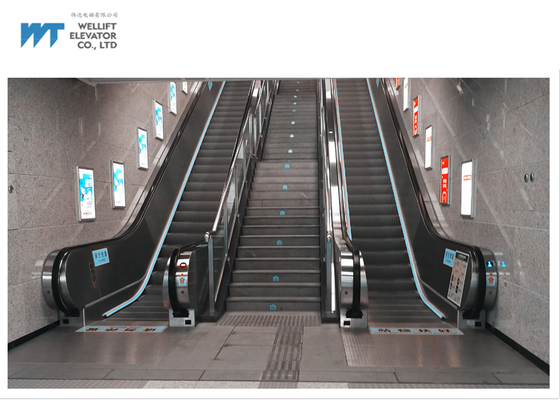

1000mm Width Electric Escalator,
Aluminum Step Electric Escalator,
VF Drive Outdoor Escalator
WELLIFT V8 serial escalators fully apply the novel materials and the leading technology for design and manufacture. The escalators have the high intensity metal structure, attractive outline. Automatic escalator sets a series of safety protection device, if there is something wrong in running process, it promptly cuts off power supply. VF control system applies fully micro-computer control , it can effectively reduce the energy consumption to realize energy saving running.
WELLIFT indoor escalator and outdoor escalator make the passengers feel comfortable, smooth and very secure. It is widely applicable for large passenger flow areas, such as the shopping centers, supermarkets, subways, airports, hotels, office buildings, etc.
Outdoor escalator has the same configuration and functions as indoor escalator. Considering the use environment of outdoor escalator, WELLIFT W8 serial outdoor escalators have added the following features:
Truss applies superior profile steel with unique structure, high intensity, thorough anti-rusting and anticorrosion treatment, fine effect, long life.
Conveyor chains proceed with special heat treatment (surface is nickel-plated)
Upper and lower part of the escalator structure should be protected by anti-rust and marine paint.
The whole design takes the escalator drainage system into consideration.Drive motor adopt water-proof type. Main and secondary step chain sprockets all use Germany water-resisting materials. Bearing is sealed and water-proof. So ensure steps work normally in outdoor environment.
Adopts Germany sealed safety switches. Wires and switches are connected by special designed fastening cover. All wires adopt elevator cables and wiring in sealed insulating box. Set up special ground connecting device with control cabin.
Steps and front plates with skid-proof function
Outdoor escalator electric device insulating level is up to IP44
Standard Specification of W8 serial outdoor escalator
Shopping mall, Commercial Building, Hospital, Subway, Airports
|Step width||600mm, 800mm, 1000mm|
|Max. Vertical rise||≤8000mm|
Superior Performance of W8 serial escalator
|“Safety the first" is the basic guideline of W8. The design, manufacture and installation all reach or exceed GB16899-2011 and EN115 "Safety rules for the construction and installation of escalators and passenger conveyors”.|
|1||W8 runs smoothly, comfortable and safe to take. It is the perfect combination of ideal design solution and up-to-date technical achievement|
|2||The truss are made of special bar sections and rectangle steel tube, with stress relieving treatment, so that to be solid, durable and no deformable|
|3||The drive device adopts the most advanced technology of German FRANDER Company which has the features of high efficiency uniform operation and low noise|
|4||The control system adopts Japanese new-generation PLC technology, which can perform function setting and trouble self-diagnose, the remote monitoring interface can be added if necessary|
|5||The steps which formed from High-strength whole piece die-cast aluminum or stainless steel, and high-quality handrail guarantee the handsome appearance, safety and durability of escalator.|
|6||Following ISO9001 Quality Control System, each W8 escalator is manufactured and tested carefully to be of good quality|
|New Standard Configurations|
