Special Design Warehouse Goods Lift 2.9M Height Cabin 2.4M Door Height

Special Design Warehouse Goods Lift 2.9M Height Cabin 2.4M Door Height
Special Design Warehouse Goods Lift 2.9M Height Cabin 2.4M Door Height

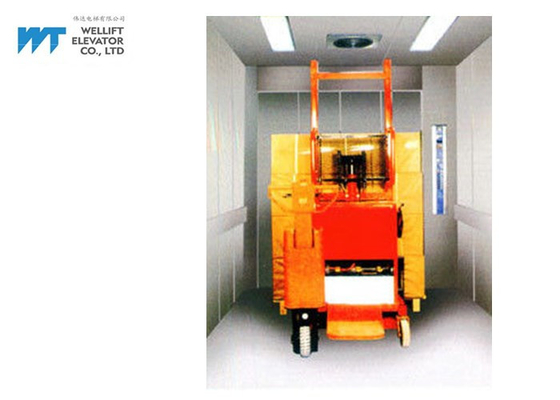

Large Image :  Special Design Warehouse Goods Lift 2.9M Height Cabin 2.4M Door Height

Product Details:
Place of Origin: China
Brand Name: WELLIFT
Certification: Special Equipment Type-examination Certificate
Model Number: T5
Payment & Shipping Terms:
Minimum Order Quantity: One Unit
Price: Negotiation
Packaging Details: Export package
Delivery Time: 60 work days
Payment Terms: T/T, L/C
Supply Ability: 1000 Unit per month

Special Design Warehouse Goods Lift 2.9M Height Cabin 2.4M Door Height

Capacity: 1000kg-5000kg Optional Control Mode: Collective Selective Control
Control System: VVVF Control System Machine Room: With Or Without
Production: 45 Days Door Knife: Single Or Double
Cabin Height: Max. 2.9m Door Height: Max. 2.4m
Power Supply: 380V 3PH 50HZ H.S. Code: 8428101090
High Light:

commercial car elevator


heavy duty elevator


Special Design Freight Elevator 2.9m Height Cabin for Warehouse Goods Lift


In Dec 2001, WELLIFT elevator successfully won the bid and provided ABB Group with 5 units of nonstandard special design VF freight elevator with ultra specification of 2900mm-high cabin and big entrance. Our company has ascended the advanced line of nonstandard product design in this trade.

Now, capacity 1000kg-5000kg freight elevator in T5 series, the height of cabin and opening door can be customized according to the actual site condition with special design:

1. Freight elevator cabin height can be increased from standard 2.3m to 2.9m;
2. Freight elevator Landing door height can be increased from standard 2.1m to 2.4m


WELLIFT freight elevator makes a perfect combination of the latest controlling and driving techniques with solid car and mechanic structure and makes a comprehensive upgrade in terms of system configuration and functional options. Even in case of the most complicated freight transportation environment and the most exceptive functional requirements, our Cargo Elevator / Goods Elevator / Freight Elevator can handle without difficulty.


Standard Specification of Goods Elevator / Freight Elevator


  1000, 1600, 2000, 3000, 4000, 5000


  0.25, 0.5,1.0

Most Stops


Max. Journey



Cargo Elevator / Goods Elevator / Freight Elevator Main Configurations:

Control system:

  Modularized micro-computer full collective selective control,

  long-distance monitor available

Driving system:

  AC-WVF(Variable voltage-variable frequency)drive system

Door system:

2-panel auto telescopic side opening door or auto center opening

door with WVF drive

Safety device:

  Door safety protection of infrared light beams

Car plate:

  2mm thick plastic spray steel plate with reinforcing steel bars

Car floor:

  Hardwood floor and 6mm thick anti-slip steel plate with pattern


Function for Cargo Elevator / Goods Elevator / Freight Elevator

 S Standard Function                                            O Optional Function

  Information Functions

  Landing alarm


  Digital indicator of floors


  Voice landing announce


  Functions for Disabled (Braille Button, Voice Announcer)


  Traveling Function

  Up-down full selective collective


  Direct landing


  Repeating open


  Overload display buzzer


  Car automatic homing to GF


  Reverse instruction cancel at terminal landing


  Quiet blower cross flow fan in car


  2 sets parallel operation


  Emergency Communication Function



  Conference mode


  Special Service Functions

  Auto/attendant service


  Independent service


  Auto lock at home landing


  Freewill service landing setting


  Tele-monitor interface reservation


  Emergency Function

  Emergency car lighting


  Fire protection operation


  ARD--- Automatic Rescue Device


  Safety Functions

  Door infrared light-beams safety protection


  Over-load display buzzer


  Safety circuit protection


  Over speed protection system


  Off-side protection at terminal landing


  Transducer breakdown protection


  Main-control CPU protection


  IC card access control


  Maintenance Functions

  Inspection operation


  Trouble self-diagnose record


  Long-distance maintenance monitor



Our T5 freight elevator is of high configurations and complete functions, and is built with dependable quality to last a lifetime. We invite you to compare this goods elevator to any competitor, and you will find it superior in design and quality.


Please feel free to contact us if you have any need for our products. Also you can visit our company website www.wellift.com to download product catalogues.
