|Name:||Commercial Glass Elevators||Cabin Shape:||Semi-circular|
|Door Opening:||Center / Side Openning||Cabin Glass:||Laminated Safety Glass|
|Cabin Floor:||PVC Or Marble||Load:||630kg-1600kg|
|Control Type:||VVVF Integrated Control||Traction Machine:||Gearless Traction Machine|
|Warranty:||12 Months||H.S. Code:||8428101090|
panoramic glass lift,
exterior glass elevator,

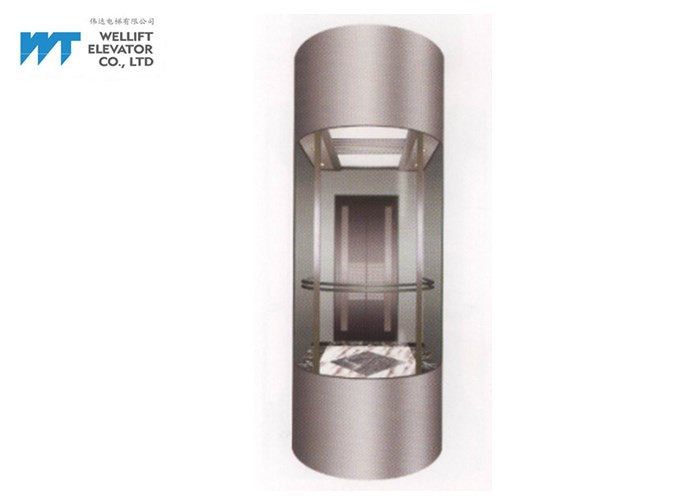

Semi Circular Commercial Glass Elevators
VVVF control Panoramic Elevator Machine Roomless type Standard configuration
This Observation elevator is suitable for many environments, from hotels, supermarkets, to high-rise office buildings.Machine room-less design is available when arrangement planning, so that it is applicable for both new-type well in new building and old-type well or reconstructed well in old building.
1. Adopts the light-weight gearless machine
2. Adopts the high-performance VVVF door operator system
3. Low noise, safe and smooth running
4. It saves building space and reduces comprehensive building cost
5. Competitive price and High quality
|Load(Kg)||630,750, 1000, 1150, 1350, 1600|
|Speed(m/s)||1.0, 1.5, 1.75, 2.0|
Wellift passenger elevator adopts the globally recommended VVVF Integrated Control System.
WELLIFT integrated drive controller is the new generation of state-of-the-art elevator-specific control and drive device. With full consideration of the safety & reliability of elevator; inherent characteristic of elevator operation and specific feature of potential energy load for elevator, this series elevator integrated drive controller adopt advanced technology of frequency control of motor speed and intelligent elevator control as well as the integration of control & drive of elevator to make the further improvement of the product performance, easy-to-use property and cost efficiency.
Model No.: Integrated drive controller
Elevator Traction Machines
Wellift passenger elevator adopts permanent magnet synchronous motor gearless drive with conversion efficiency reaching 100%, applies high permanent magnet materials, realizes miniaturization and high efficiency of the system free of gear oil and maintenance and electromagnetism interference, low noise.
Model No.: V8 PM Gearless traction machine
Traction ratio: 2:1
Loading Capacity: 630kg - 1600kg
Elevator Door System
Applied with VVVF control technology, running curve of door operator can be adjusted discretionarily, running safely and comfortably, low noise and credibility quality, easy to be adjusted and installed.
Opening Type: Center Opening and Side Opening
Elevator Safety Components
Speed governor, safety gear, oil buffer, guide shoe and rope brake ,all safety components parts are carefully selected from top-grade professional factories, fully comply with GB7588-2003 standard ( equivalent to the EN81-1: 1998 standard), featuring professional product design, high quality, passing national type testing certification.
No matter on design, manufacture, spare parts, technique or other sides, industrial standard is strictly followed, the same as other leading brands, even exceeding them on some details. All main parts are carefully selected from top-grade professional factories guaranteed by ISO9001 Quality Control System; the performance of complete machine is unquestionably perfect.
Please feel free to contact us if you have any need for our products. Also you can visit our company website www.wellift.com to download product catalogues.
Contact Person: WELLIFT
