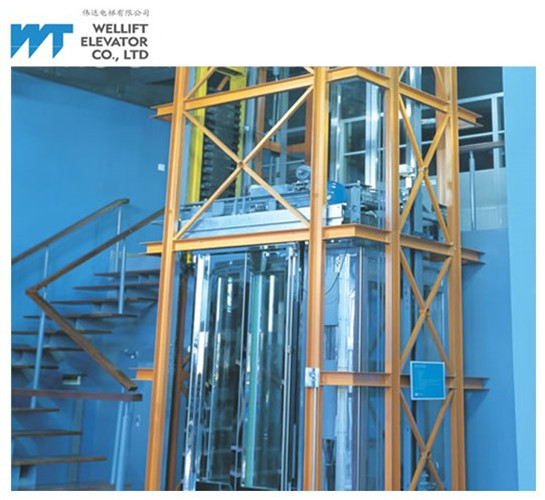

Machine Roomless Luxury Passenger Elevator For Special Appearance Buildings

Machine Roomless Passenger Elevator with VVVF Integrated Control System

Our machine roomless passenger elevator, better fitting the buildings with special appearance requirements, combining with the merits of tradition traction drive and hydraulic drive , is widely accepted by customers with unbeatable advantages of simplifying building design, efficiently using space and saving constructing cost, etc.

V8-M machine roomless passenger advantages:

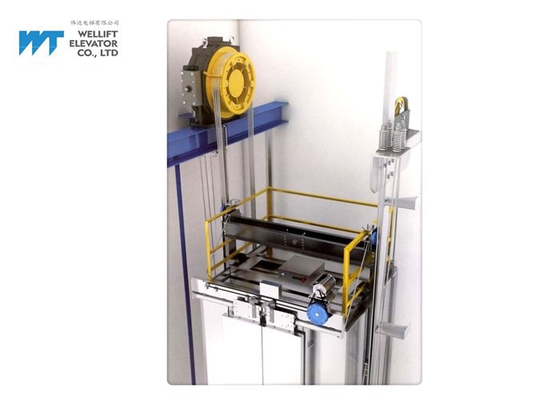

1.  Adopts the light-weight gearless machine

2.  Adopts the high-performance VVVF door operator system

3.  Low noise, safe and smooth running

4.  It saves building space and reduces comprehensive building cost

5.  Competitive price and High quality

Standard Specification of Machine Roomless passenger elevator

Control System

Wellift passenger elevator adopts the globally recommended VVVF Integrated Control System.

WELLIFT integrated drive controller is the new generation of state-of-the-art elevator-specific control and drive device. With full consideration of the safety & reliability of elevator; inherent characteristic of elevator operation and specific feature of potential energy load for elevator, this series elevator integrated drive controller adopt advanced technology of frequency control of motor speed and intelligent elevator control as well as the integration of control & drive of elevator to make the further improvement of the product performance, easy-to-use property and cost efficiency.

Model No.: Integrated drive controller

Rated Capacity: 4.7 KVA - 50 KVA

Rated output current: 6.2A – 65A

Matching motor: 2.2KW – 30KW

Elevator Traction Machines

Wellift passenger elevator adopts permanent magnet synchronous motor gearless drive with conversion efficiency reaching 100%, applies high permanent magnet materials, realizes miniaturization and high efficiency of the system free of gear oil and maintenance and electromagnetism interference, low noise.

Model No.: V8 PM Gearless traction machine

Traction ratio: 2:1

Loading Capacity: 400kg - 1600kg

Speed Range: 0.5m/s - 4.0m/s

Sheave groove No.: 4 / 5 / 6 / 7

Elevator Door System

Applied with VVVF control technology, running curve of door operator can be adjusted discretionarily, running safely and comfortably, low noise and credibility quality, easy to be adjusted and installed.

Elevator Safety Components

Speed governor, safety gear, oil buffer, guide shoe and rope brake ,all safety components parts are carefully selected from top-grade professional factories, fully comply with GB7588-2003 standard ( equivalent to the EN81-1: 1998 standard), featuring professional product design, high quality, passing national type testing certification.

No matter on design, manufacture, spare parts, technique or other sides, industrial standard is strictly followed, the same as other leading brands, even exceeding them on some details. All main parts are carefully selected from top-grade professional factories guaranteed by ISO9001 Quality Control System; the performance of complete machine is unquestionably perfect.

Wellift Special cabin design

The cabin and landing door of V8 passenger elevator have been heightened with special design:
1. cabin height can be increased from standard 2.3m to 2.6m;
2. Landing door height can be increased from standard 2.1m to 2.2m

The promotion on the standard greatly broadens the space and improves the comfortable feeling of the elevator, the lobby hall looks more noble, upgrading the building’s grade and displaying the host’s personality as well.

Please feel free to contact us if you have any need for our products. Also you can visit our company website www.wellift.com to download product catalogues.
