Luxury Cabin 400Kg Residential Home Elevators 5 Persons Rated Speed 0.4M/s

Luxury Cabin 400Kg Residential Home Elevators 5 Persons Rated Speed 0.4M/s
Luxury Cabin 400Kg Residential Home Elevators 5 Persons Rated Speed 0.4M/s Luxury Cabin 400Kg Residential Home Elevators 5 Persons Rated Speed 0.4M/s

Large Image :  Luxury Cabin 400Kg Residential Home Elevators 5 Persons Rated Speed 0.4M/s

Product Details:
Place of Origin: China
Brand Name: WELLIFT
Certification: Special Equipment Type-examination Certificate
Model Number: V3
Payment & Shipping Terms:
Minimum Order Quantity: One Unit
Price: USD 14000---USD20000 per unit
Packaging Details: Export package
Delivery Time: 45 work days
Payment Terms: T/T, L/C
Supply Ability: 1000 Unit per month

Luxury Cabin 400Kg Residential Home Elevators 5 Persons Rated Speed 0.4M/s

Product Name: Residential Home Elevators Main Power: 380V Or 220V
Cabin Design: Painted Steel, Stainless Steel, Etc Button: Push Touch Button
Running Sound: Low Noise Capacity: 400 Kg
Control System: VVVF Integrated Control System Speed: 0.4m/s
ARD: Included Warranty: 18 Months
High Light:

home lift elevator


residential elevator lift


Luxury Cabin Residential Home Elevators


5 Persons 400kg Villa Residential Lifts and Elevators with Luxury Cabin


Wellift villa residential lift applies the highly integrated intellectual control system with the smooth brake and low noise. The cabin is of the diverse and flexible design. It can put together any style of indoor home into one. Not only improve the construction image, but also creates a bright and charming travel space.

The most widely used specification of villa residential lift is 400Kg capacity 0.4m/s speed and detailed specifications are as follows:


Standard Specification of 400kg villa residential lifts and elevators

Model V3
Rated capacity(kg) 400
Number of passenger 5
Rated speed (m/s) 0.4
Machine room Position Without
Type of car door Auto center opening door with VVVF drive
Car Dimension (W X D X H ) 950mm width x 1200mm depth x 2110 mm High

Landing Doors Entrance

(W X H)

700mm width x 2000 mm High

Center opening door

Overhead(mm) ≥3200
Pit Depth(mm) ≥550

Shaft Net Size

(Width X Depth)

1600 mm Width x 1500 mm Depth

Center opening door

Max. Travel 12
Max. Floor 5
Max. Floor Height 2700mm
Main Power Supply 380V/220V,50HZ
Lighting Power Supply 220V,50HZ



Product Features

  • Machine roomless design saves construction cost
  • Specially designed car sling with 2:1 roping
  • VVV drive, micro-controller, smooth and comfortable
  • 220V or 380V specialized motor which is more professional and effective
  • Special traction machine bracket fixed on guide rail that assures no pressure on shaft wall
  • Excellent at energy saving with simple outer looking and vibration proof


Key Components

1. Elevator Traction Machines

Special purpose PM gearless traction machine for villa elevator, the motor has Ф240 wheel diameter and its unique structure lowered the total height of the motor and reduces the overhead requirement.


2. Elevator Door System

Adopts VVVF technology and it ensures noiseless and smooth operation.


3. Control System adopts Full Serial Villa Elevator Controller

Adopts FPGA+DSP control platform with strong data processing capacity, anti-interference design, safety protections for both elevator control and drive system control, which ensure the super reliability and stability of our home elevator.

2.2kw low power is specially designed for villa elevator.


4. Elevator Safety Components

Speed governor, safety gear, oil buffer, guide shoe and rope brake ,all safety components parts are carefully selected from top-grade professional factories, fully comply with GB7588-2003 standard ( equivalent to the EN81-1: 1998 standard), featuring professional product design, high quality, passing national type testing certification.

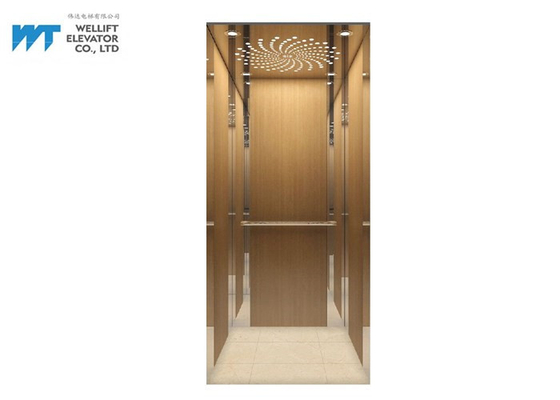

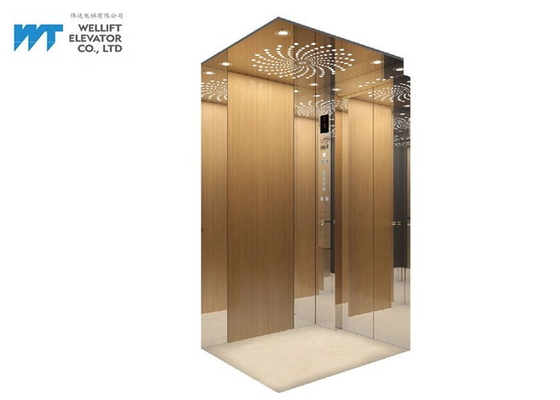

Cabin Design


Wellift residential home elevators or villa elevator cabin uses new materials, new craft decoration;

It’s fashionable, beautiful and useful. Excellent choices for users, that ranges from various painted steel,

Mirror stainless steel, hairline stainless steel, vibration stainless steel, etching stainless steel, etc.

You may choose the finishing matches that suit the building design.




Wellift residential home elevators or villa elevator ergonomic COP Design with high resolution convenience for operation & better sensitivity ensue the entire feeling comfortable.


Standard Design


Wellift standard cabin is of simple and fashionable design, which is harmonious with various building styles.
1. Three types of landing door frame are available to suit different building designs.
2. Cabin wall is with optional designs. Materials are painted steel, stainless steel, mirror steel etc. for choice.
3. Ceiling is optional in standard styles.
4. The platform is high-quality plastic floor, or reserve space to lay down stone plate according to client's favor.
5. Optional color patterns of landing doors


The car and landing door of residential home elevators or villa elevator have been heightened with special design:

1. The car has been lengthened from standard 2.0m to 2.1m;
2. The landing door has been lengthened from standard 1.9m to 2.0m.

3. Dimension of cabin and opening door can be customized according to the actual site condition.


Function for Residential Home Elevators and villa elevator

 B Standard Function  O Optional Function
Safety Features
Fault Detection
 B Motor Overheating Protection  B Forbidden Switch of Door Opening
 B Subsection Inspection of Safety Circuit  B Speed Governor Tension Safety Contacts
 B Main Power Switch Box  B Car Door Contacts
 B Running Hours Cumulating  B

Car Lighting Main Switch Box Main Fuse

Inside of Controller Box

 B Car Positioning Switch  B Pit Brace Rod Contacts
 B Car Emergency Stop Switch--Car Top  B Car Top Brace Rod Contacts
 B Car Emergency Stop Switch--Pit  B Electrical Brake Releasing Function
 B Safety Gear Safety Contact  B Car Emergency Light
 B Speed Governor Safety Contacts  O ARD--- Automatic Rescue Device
 B Main Switch Inside Controller Box  B Emergency Call(One Digit Dial Telephone)
Information Function Comfort Functions
Landing Information Display Entering & Exit Cabin
 B Landing Call Indicating Light  B Door Opening Button
 O Travelling Direction Indicators at Every Floor, Floor Number Display  B Door Closing Button
 B Light Curtain
Inside Cabin Information Display Comfortable Running
 B COP Call Indicating Light  B Car Lighting
 B Overload Symbol& Buzzer  B Fan
 B Car Position Display  O Background Music
 B Travelling Direction Indicators  O Voice Announcer
CCTV Camera Misusage Protection
 B Door Zone Indicating Light  B Calling Cancellation by 2 Times Button Pressing on COP
 B Running Times Accumulating  B Viscous Button Monitoring
 B Normal Fault Signal  B Opposite Direction Calling on COP
Control Functions
Prior/Special Service Functions / Special Functions
 B Landing Call Forbidden  B Testing Running
 B Auto Door  O Functions for Disabled (Braille Button, Voice Announcer)
 B Door Opening and Closing Timing at Each Floor, Unified Regulation  B Re-Opening Door When Landing Call
 B Inspection Running  O Through Opening Door
 B Emergency Returning  O Optional Door is Available (If It is Through Opening)



Please feel free to contact us if you have any need for our products. Also you can visit our company website www.wellift.com to download product catalogues.
