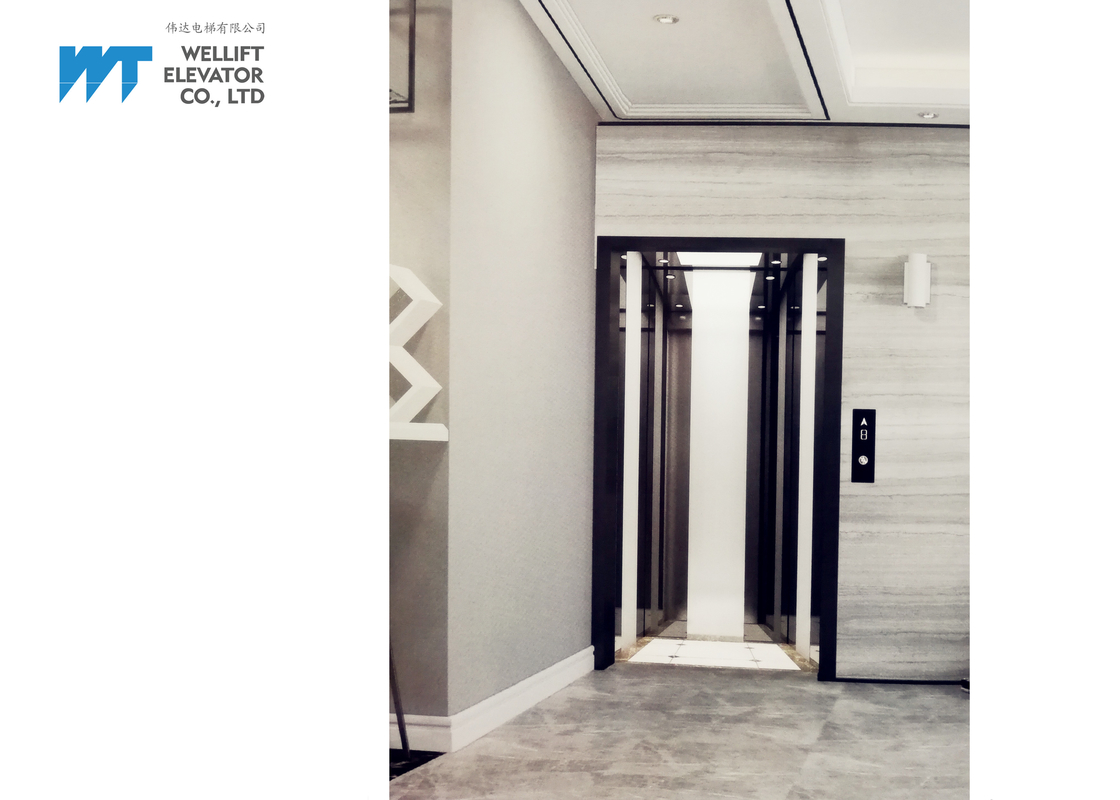

Low Pit 0.4m/S 400kg Residential Home Elevators

Low Pit 0.4m/S 400kg Residential Home Elevators
Low Pit 0.4m/S 400kg Residential Home Elevators

Large Image :  Low Pit 0.4m/S 400kg Residential Home Elevators

Product Details:
Place of Origin: China
Brand Name: WELLIFT
Certification: Special Equipment Type-examination Certificate
Model Number: V3
Payment & Shipping Terms:
Minimum Order Quantity: One Unit
Price: USD 14000---USD20000 per unit
Packaging Details: Export package
Delivery Time: 45 work days
Payment Terms: T/T, L/C
Supply Ability: 1000 Unit per month

Low Pit 0.4m/S 400kg Residential Home Elevators

Description
Name: Home Lift And Villa Elevator Max. Travel: 12m
Overhead: ≥3200 Mm Pit Depth: ≥450mm
Cabin Door Height: 2.0m Standard Design Landing Door Height: 2.0m Standard Design
Cabin Material: 304# Stainless Steel Speed: 0.4m/s
Loading Capacity: 320kg - 400kg Warranty: 12 Months
High Light:

400kg Residential Home Elevators

,

0.4m/S Residential Home Elevators

,

ss304 home lift elevator

Low pit 400kg home elevator adopts VVVF control proved technology guarantees more security



WELLIFT home elevator product features:



Low pit, allows for no construction shaft, beautiful and comfortable.

Through the advanced safety detection and protection function, the main controller is well informed about the elevator state and the situation in the shaft. It is adequately equipped to ensure your safety in case of emergency.



Standard specification of Residential Home Elevators and villa elevator

Target market:   Villa and high grade residential building
Load(Kg)   320,400
Speed(m/s)   0.4
Most Stops   5
Max. Journey  12m



Product Features

  • Machine roomless design saves construction cost
  • Specially designed car sling with 2:1 roping
  • VVV drive, micro-controller, smooth and comfortable
  • 220V or 380V specialized motor which is more professional and effective
  • Special traction machine bracket fixed on guide rail that assures no pressure on shaft wall
  • Excellent at energy saving with simple outer looking and vibration proof



Key Components

1. Elevator Traction Machines

Special purpose PM gearless traction machine for villa elevator, the motor has Ф240 wheel diameter and its unique structure lowered the total height of the motor and reduces the overhead requirement.



2. Elevator Door System

Adopts VVVF technology and it ensures noiseless and smooth operation.



3. Control System adopts Full Serial Villa Elevator Controller

Adopts FPGA+DSP control platform with strong data processing capacity, anti-interference design, safety protections for both elevator control and drive system control, which ensure the super reliability and stability of our home elevator.

2.2kw low power is specially designed for villa elevator.



4. Elevator Safety Components

Speed governor, safety gear, oil buffer, guide shoe and rope brake ,all safety components parts are carefully selected from top-grade professional factories, fully comply with GB7588-2003 standard ( equivalent to the EN81-1: 1998 standard), featuring professional product design, high quality, passing national type testing certification.



Function for Residential Home Elevators and villa elevator

 B Standard Function  O Optional Function
Safety Features
Fault Detection
 B Motor Overheating Protection  B Forbidden Switch of Door Opening
 B Subsection Inspection of Safety Circuit  B Speed Governor Tension Safety Contacts
 B Main Power Switch Box  B Car Door Contacts
 B Running Hours Cumulating  B

Car Lighting Main Switch Box Main Fuse

Inside of Controller Box

 B Car Positioning Switch  B Pit Brace Rod Contacts
 B Car Emergency Stop Switch--Car Top  B Car Top Brace Rod Contacts
 B Car Emergency Stop Switch--Pit  B Electrical Brake Releasing Function
 B Safety Gear Safety Contact  B Car Emergency Light
 B Speed Governor Safety Contacts  O ARD--- Automatic Rescue Device
 B Main Switch Inside Controller Box  B Emergency Call(One Digit Dial Telephone)
Information Function Comfort Functions
Landing Information Display Entering & Exit Cabin
 B Landing Call Indicating Light  B Door Opening Button
 O Travelling Direction Indicators at Every Floor, Floor Number Display  B Door Closing Button
 B Light Curtain
Inside Cabin Information Display Comfortable Running
 B COP Call Indicating Light  B Car Lighting
 B Overload Symbol& Buzzer  B Fan
 B Car Position Display  O Background Music
 B Travelling Direction Indicators  O Voice Announcer
CCTV Camera Misusage Protection
 B Door Zone Indicating Light  B Calling Cancellation by 2 Times Button Pressing on COP
 B Running Times Accumulating  B Viscous Button Monitoring
 B Normal Fault Signal  B Opposite Direction Calling on COP
Control Functions
Prior/Special Service Functions / Special Functions
 B Landing Call Forbidden  B Testing Running
 B Auto Door  O Functions for Disabled (Braille Button, Voice Announcer)
 B Door Opening and Closing Timing at Each Floor, Unified Regulation  B Re-Opening Door When Landing Call
 B Inspection Running  O Through Opening Door
 B Emergency Returning  O Optional Door is Available (If It is Through Opening)



On the basis of your original household environment, our luxury home lift and villa elevator chooses superior materials to save power and energy. It uses individual, graceful, noble design styles to cabin decoration. With low-carbon energy, less space, low construction costs, operating costs and low lift characteristics, WELLIFT luxury home lift and villa elevator are well received in Philippines, Bangladesh, Uzbekistan, Saudi Arabia, Albania, Russia, Nigeria, South Africa, India, and more.



Please feel free to contact us if you have any need for our products. Also you can visit our company website www.wellift.com to download product catalogues.
