Product Details:
|
| Usage: | Panoramic Elevator | Drive: | Magnet Permanent Gearless Drive |
|---|---|---|---|
| Control System: | AC VVVF Control System | Machine Room: | Above Shaft Or Machine Roomless |
| Cabin Shape: | Semi-circular | Load: | 1000kg |
| Speed: | 2.0m/s | Display Type: | LCD Display |
| Cabin Material: | Stainless Steel Frame With Safety Glass Panel | ||
| High Light: | commercial glass elevators,exterior glass elevator,Load 1000kg Panoramic Elevator |
||

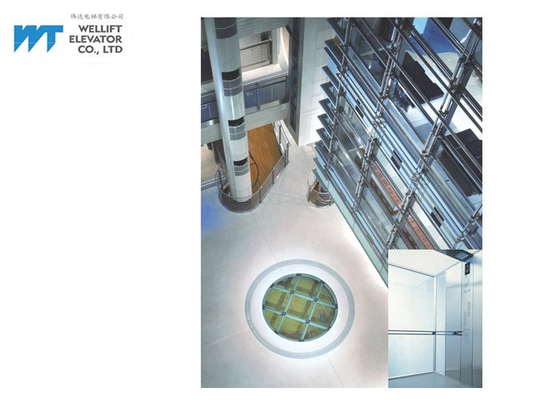

Semi-Circular type panoramic elevator cabin could be 180 degree Sightseeing styles satisfying your different individualized requirements. This panoramic elevator could be widely applied in different hotel, commercial centre, shopping mall and so on.
If your building has been completed, please offer us the layout, we can design panoramic elevator according to the actual situation for you. In addition, we welcome designer can refer to our standard shaft size as follows:
Standard Specification of 1000kg Semi-Circular Panoramic Elevator
| Model | V8-O |
| Rated capacity(kg) | 1000 |
| Number of passenger | 13 |
| Rated speed (m/s) | 1.0, 1.5, 1.75, 2.0 |
| Type of car door | Auto center opening door with VVVF drive |
| Car Dimension (W X D X H ) | 1300mm width x 1908mm depth x 2400 mm High |
| Landing Doors Entrance (W X H) | 900mm width x 2100 mm High |
| Overhead(mm) | ≥4300,4450,4550,4800 |
| Pit Depth(mm) | ≥1800,1900,2000,2200 |
| Shaft Size (Width X Depth) | 2250mm Width x 2420 mm Depth |
| Machine room Position | Above shaft |
| Machine room Dimension (W X D X H ) | 2250mm width x 3000mm depth x 2300 mm High |
Key Components
Control System
Wellift passenger elevator adopts the globally recommended VVVF Integrated Control System.
WELLIFT integrated drive controller is the new generation of state-of-the-art elevator-specific control and drive device. With full consideration of the safety & reliability of elevator; inherent characteristic of elevator operation and specific feature of potential energy load for elevator, this series elevator integrated drive controller adopt advanced technology of frequency control of motor speed and intelligent elevator control as well as the integration of control & drive of elevator to make the further improvement of the product performance, easy-to-use property and cost efficiency.
Model No.: Integrated drive controller
Elevator Traction Machines
Wellift passenger elevator adopts permanent magnet synchronous motor gearless drive with conversion efficiency reaching 100%, applies high permanent magnet materials, realizes miniaturization and high efficiency of the system free of gear oil and maintenance and electromagnetism interference, low noise.
Model No.: V8 PM Gearless traction machine
Traction ratio: 2:1
Loading Capacity: 630kg - 1600kg
Elevator Door System
Applied with VVVF control technology, running curve of door operator can be adjusted discretionarily, running safely and comfortably, low noise and credibility quality, easy to be adjusted and installed.
Opening Type: Center Opening and Side Opening
Elevator Safety Components
Speed governor, safety gear, oil buffer, guide shoe and rope brake ,all safety components parts are carefully selected from top-grade professional factories, fully comply with GB7588-2003 standard ( equivalent to the EN81-1: 1998 standard), featuring professional product design, high quality, passing national type testing certification.
