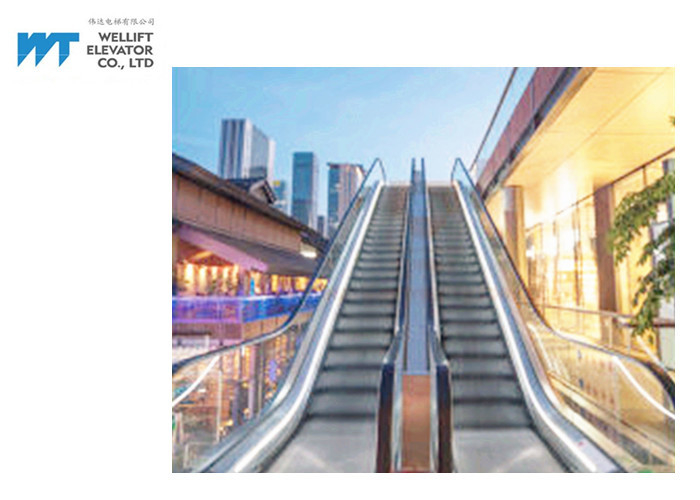

Large Image :  LED Green Light Exterior Escalators , VVVF Operation Weatherproof Escalator

Product Details:
Place of Origin: China
Brand Name: WELLIFT
Certification: Special Equipment Type-examination Certificate
Model Number: W8
Payment & Shipping Terms:
Minimum Order Quantity: One Unit
Price: Negotiation
Packaging Details: Export package
Delivery Time: 40 work days
Payment Terms: T/T, L/C
Supply Ability: 1000 Unit per month

LED Green Light Exterior Escalators , VVVF Operation Weatherproof Escalator

Usage: Subway, Airports, Shopping Mall, Etc Dispose Type: Parallel Or Cross Arrangement
Step Width: 600mm/ 800mm / 1000mm Name: Outdoor Weatherproof Escalator
Rated Speed: 0.5m/s Control System: VVVF Drive Or PLC System
Type: Outdoor H.S. Code: 8428400000
Balustrade: Glass Or Stainless Steel For Optional Production: 45 Days
High Light:

exterior escalators


external escalators


LED Green Light for Outdoor Escalator with VVVF Harmonious Operation


Wellift escalator lighting decoration of indoor and outdoor type adopts LED energy-saving lighting.

LED green lighting product with high performance and with the automatic shut off mode; it is more efficient than the traditional lighting products, It has no flash, soft light, Long lifespan, less maintenance and is green and environmental-friendly.

The escalator lighting decoration includes the following type:

  • Comb illumination (Standard Device)

LED Green Light Exterior Escalators , VVVF Operation Weatherproof Escalator 0

Soft and green fluorescent light sends out from the engaging teeth in-between two adjacent steps (treads) in up /down end. It reminds the passengers to pay attention to the step entry exit horizontal section. It thus enhances the travel safely.

  • Skirt illumination (Optional Device)

The illumination has been installed in the skirt panel near the comb plate. It offers the lighting for the step and the comb plate. It Is more convenient for the passengers to go up and down the escalator.

  • Handrail illumination (Optional Device)

The handrail illumination has been installed in the handrail frame. The gentle light adds charm to the running escalator.



WELLIFT indoor escalator and outdoor escalator make the passengers feel comfortable, smooth and very secure. It is applicable for Subway, Airports, hotels, office buildings, shopping center, etc with good quality and competitive price.


Outdoor escalator has the same configuration and functions as indoor escalator. Considering the use environment of outdoor escalator, WELLIFT W8 serial outdoor escalators have added the following features:

  • Anti-rusting and anticorrosion treatment

Truss applies superior profile steel with unique structure, high intensity, thorough anti-rusting and anticorrosion treatment, fine effect, long life.

      Conveyor chains proceed with special heat treatment (surface is nickel-plated)

      Upper and lower part of the escalator structure should be protected by anti-rust and marine paint.

  • Water-proof measures

The whole design takes the escalator drainage system into consideration. Drive motor adopt water-proof type. Main and secondary step chain sprockets all use Germany water-resisting materials. Bearing is sealed and water-proof. So ensure steps work normally in outdoor environment.

  • Insulation Measures

       Adopts Germany sealed safety switches.

       Wires and switches are connected by special designed fastening cover.

       All wires adopt elevator cables and wiring in sealed insulating box.

       Set up special ground connecting device with control cabin.

  • Dust-proof functions

       Steps and front plates with skid-proof function

  • High insulating level

       Outdoor escalator electric device insulating level is up to IP44

  • Traction machine abandon belt brake, use center brake instead.
  • Set up oil-water separator equipment


Standard Specification of W8 serial outdoor escalator

 Target market:   Shopping mall, Commercial Building, Hospital, Subway, Airports
 Step width   600mm, 800mm, 1000mm
 Speed(m/s)   ≤0.5
 Inclination   30°, 35°
 Max. Vertical rise   ≤8000mm
 Operating environment   outdoor


Superior Performance of W8 serial escalator

“Safety the first" is the basic guideline of W8. The design, manufacture and installation all reach or exceed GB16899-2011 and EN1 15"Safety rules for the construction and installation of escalators and passenger conveyors”.
1 W8 runs smoothly, comfortable and safe to take. It is the perfect combination of ideal design solution and up-to-date technical achievement
2 The truss are made of special bar sections and rectangle steel tube, with stress relieving treatment, so that to be solid, durable and no deformable
3 The drive device adopts the most advanced technology of German FRANDER Company which has the features of high efficiency uniform operation and low noise
4 The control system adopts Japanese new-generation PLC technology, which can perform function setting and trouble self-diagnose, the remote monitoring interface can be added if necessary
5 The steps which formed from High-strength whole piece die-cast aluminum or stainless steel, and high-quality handrail guarantee the handsome appearance, safety and durability of escalator.
6 Following ISO9001 Quality Control System, each W8 escalator is manufactured and tested carefully to be of good quality
 New Standard Configurations
  • Automatic oil lubricator
  • Automatic trouble display
  • Remote monitoring interface
 Optional Function
  • Automatic start / stop System
  • VF drive system
  • Oil / water separator(Apply to outdoor escalator)
 Decorative Selection
  • With elegant appearance, advanced technology and smart design, W8 is harmonious with various circumstances. You can select suitable handrail glass and tread according to building style
  • Standard color of handrail is black; other 4 colors (blue, green, and grey, red) are available with additional charge.


WELLIFT W8 serial escalator has unbeatable advantages on safety, operation appearance and energy saving in this trade. It is applicable for hotels, office buildings, shopping center, etc with good quality and competitive price.
