Product Details:
|
| Name: | Hospital Bed Elevator | Load: | 1600kg |
|---|---|---|---|
| Speed: | 1.0m/s To 2.5m/s | Group Control: | 3 To 8 Units |
| Traction Ratio: | 2:1 | HS Code: | 84281010 |
| Control: | AC VVVF Control | Power: | AC 380V 3PH 50HZ |
| Lighting: | 220V 1PH 50HZ | COP: | Special COP For Disabled |
| Highlight: | hospital stretcher lift,hospital bed lift,High Efficiency Hospital Bed Elevator |
||

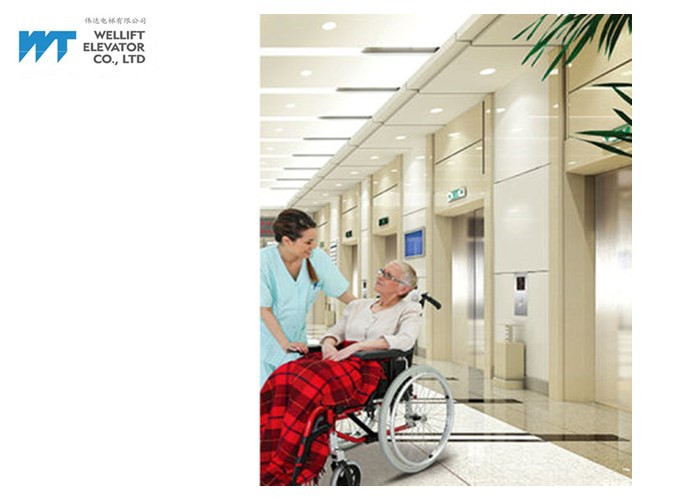

Hospital bed elevator cored on human being. When many bed elevators are used in a hospital building, to improve the elevator’s service, the reasonable and high efficiency group control management design establishes express access to save time for first-aid transportation personnel.
Wellift elevator high performance group control management system enable 3 to 8 units of elevators to carry out the function of group control, which response and deal with the hall call reasonably and reduce the passengers’ waiting time effectively. Our elevator group control system is well received in Philippines, Bangladesh, Uzbekistan, Saudi Arabia, Albania, Russia, Nigeria, South Africa, and more.
| Model | V8 |
| Rated capacity(kg) | 1600 |
| Number of passenger | 21 |
| Rated speed (m/s) | 1.0, 1.5, 1.75, 2.0, 2.5 |
| Machine room Position | Above shaft |
|
Type of car door |
Auto center opening door with VVVF drive |
| Auto Side opening door with VVVF drive | |
| Car Dimension (W X D X H ) | 1400mm width x 2400mm depth x 2600 mm High |
|
Landing Doors Entrance (W X H) |
1000mm width x 2200 mm High Center opening door |
| 1200mm width x 2200 mm High Side opening door | |
| Overhead(mm) | ≥4600, 4860,5000 |
| Pit Depth(mm) | ≥1400, 1600,1800 |
|
Shaft Net Size (Width X Depth) |
2450 mm Width x 2850 mm Depth Center opening door |
| 2350 mm Width x 2900 mm Depth Side opening door |
Control System
Wellift passenger elevator adopts the globally recommended VVVF Integrated Control System.
WELLIFT integrated drive controller is the new generation of state-of-the-art elevator-specific control and drive device. With full consideration of the safety & reliability of elevator; inherent characteristic of elevator operation and specific feature of potential energy load for elevator, this series elevator integrated drive controller adopt advanced technology of frequency control of motor speed and intelligent elevator control as well as the integration of control & drive of elevator to make the further improvement of the product performance, easy-to-use property and cost efficiency.
Elevator Traction Machines
Wellift passenger elevator adopts permanent magnet synchronous motor gearless drive with conversion efficiency reaching 100%, applies high permanent magnet materials, realizes miniaturization and high efficiency of the system free of gear oil and maintenance and electromagnetism interference, low noise.
Model No.: V8 PM Gearless traction machine
Traction ratio: 2:1
Elevator Door System
Applied with VVVF control technology, running curve of door operator can be adjusted discretionarily, running safely and comfortably, low noise and credibility quality, easy to be adjusted and installed.
Opening Type: Center Opening and Side Opening
Elevator Safety Components
Speed governor, safety gear, oil buffer, guide shoe and rope brake ,all safety components parts are carefully selected from top-grade professional factories, fully comply with GB7588-2003 standard ( equivalent to the EN81-1: 1998 standard), featuring professional product design, high quality, passing national type testing certification.
No matter on design, manufacture, spare parts, technique or other sides, industrial standard is strictly followed, the same as other leading brands, even exceeding them on some details. All main parts are carefully selected from top-grade professional factories guaranteed by ISO9001 Quality Control System; the performance of complete machine is unquestionably perfect.
Please feel free to contact us if you have any need for our products. Also you can visit our company website www.wellift.com to download product catalogues.
