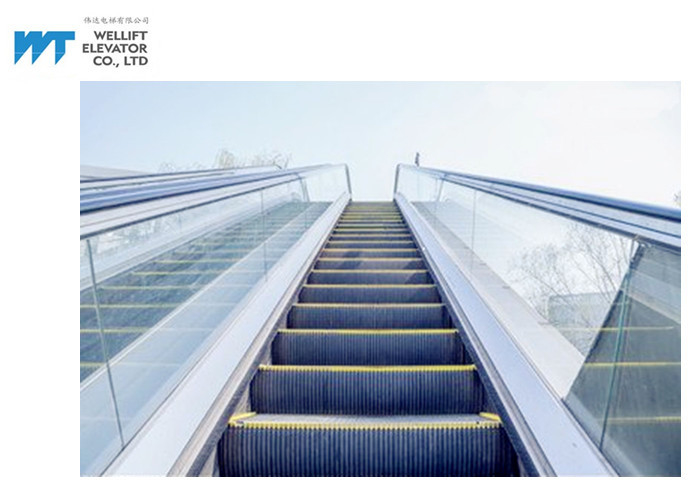

Glass / Stainless Steel Balustrade Outdoor Escalator With Comb Plate Safety Devices

Glass / Stainless Steel Balustrade Outdoor Escalator With Comb Plate Safety Devices
Glass / Stainless Steel Balustrade Outdoor Escalator With Comb Plate Safety Devices

Large Image :  Glass / Stainless Steel Balustrade Outdoor Escalator With Comb Plate Safety Devices

Product Details:
Place of Origin: China
Brand Name: WELLIFT
Certification: Special Equipment Type-examination Certificate
Model Number: W8
Payment & Shipping Terms:
Minimum Order Quantity: One Unit
Price: Negotiation
Packaging Details: Export package
Delivery Time: 40 work days
Payment Terms: T/T, L/C
Supply Ability: 1000 Unit per month

Glass / Stainless Steel Balustrade Outdoor Escalator With Comb Plate Safety Devices

Usage: Subway, Airports, Shopping Mall, Etc Driving System: PLC Or VVVF Technology
Balustrade: Glass Or Stainless Steel For Optional Vertical Rise: 2800mm-8400mm
Power Voltage: 380V Or Local Voltage Step Width: 600mm/800mm/1000mm
Step Material: Aluminum Alloy Die-cast Travel Height: H≤8000mm
H.S. Code: 8428400000 Type: Outdoor Escalator
High Light:

outside escalator


external escalators


VVVF Outdoor Escalator 1000mm Width Step with Comb Plate safety devices


Comb plate safety device is the one standard function of escalator. Front ends of comb teeth plates are installed on springs. If any foreign substance is nipped between moving escalator steps and static comb teeth plates, such plates will move in vertical or backward directions, and trigger the safety switches monitoring at both sides of the plates, and the escalators will be automatically stopped.

WELLIFT automatic escalator sets a series of safety protection device. VVVF control system applies fully computerized control. If there is something wrong in running process, it promptly cuts off power supply.

WELLIFT indoor escalator and outdoor escalator make the passengers feel comfortable, smooth and very secure. It is applicable for Subway, Airports, hotels, office buildings, shopping center, etc with good quality and competitive price.


Outdoor escalator has the same configuration and functions as indoor escalator. Considering the use environment of outdoor escalator, WELLIFT W8 serial outdoor escalators have added the following features:

  • Anti-rusting and anticorrosion treatment

Truss applies superior profile steel with unique structure, high intensity, thorough anti-rusting and anticorrosion treatment, fine effect, long life.

      Conveyor chains proceed with special heat treatment (surface is nickel-plated)

      Upper and lower part of the escalator structure should be protected by anti-rust and marine paint.

  • Water-proof measures

The whole design takes the escalator drainage system into consideration.Drive motor adopt water-proof type. Main and secondary step chain sprockets all use Germany water-resisting materials. Bearing is sealed and water-proof. So ensure steps work normally in outdoor environment.

  • Insulation Measures

        Adopts Germany sealed safety switches.

        Wires and switches are connected by special designed fastening cover.

        All wires adopt  elevator cables and wiring in sealed insulating box.

        Set up special ground connecting device with control cabin.

  • Dust-proof functions

        Steps and front plates with skid-proof function

  • High insulating level

       Outdoor escalator electric device insulating level is up to IP44

  • Traction machine abandon belt brake, use center brake instead.
  • Set up oil-water separator equipment



Standard Specification of W8 serial outdoor escalator

 Target market:   Shopping mall, Commercial Building, Hospital, Subway, Airports
 Step width   600mm, 800mm, 1000mm
 Speed(m/s)   ≤0.5
 Inclination   30°, 35°
 Max. Vertical rise   ≤8000mm
 Operating environment   outdoor


Superior Performance of W8 serial escalator

“Safety the first" is the basic guideline of W8. The design, manufacture and installation all reach or exceed GB16899-2011 and EN115 "Safety rules for the construction and installation of escalators and passenger conveyors”.
1 W8 runs smoothly, comfortable and safe to take. It is the perfect combination of ideal design solution and up-to-date technical achievement
2 The truss are made of special bar sections and rectangle steel tube, with stress relieving treatment, so that to be solid, durable and no deformable
3 The drive device adopts the most advanced technology of German FRANDER Company which has the features of high efficiency uniform operation and low noise
4 The control system adopts Japanese new-generation PLC technology, which can perform function setting and trouble self-diagnose, the remote monitoring interface can be added if necessary
5 The steps which formed from High-strength whole piece die-cast aluminum or stainless steel, and high-quality handrail guarantee the handsome appearance, safety and durability of escalator.
6 Following ISO9001 Quality Control System, each W8 escalator is manufactured and tested carefully to be of good quality
  New Standard Configurations
  • Automatic oil lubricator
  • Automatic trouble display
  • Remote monitoring interface
  Optional Function
  • Automatic start / stop System
  • VF drive system
  • Oil / water separator(Apply to outdoor escalator)
  Decorative Selection
  • With elegant appearance, advanced technology and smart design, W8 is harmonious with various circumstances. You can select suitable handrail glass and tread according to building style
  • Standard color of handrail is black; other 4 colors (blue, green, and grey, red) are available with additional charge.


Please feel free to contact us if you have any need for our products. Also you can visit our company website www.wellift.com to download product catalogues.
