Product Details:
|
Machine Room: | With And Without | Door Protection: | Light Curtains |
---|---|---|---|
Cabin Material: | Safety Glass And 304# Hairline Stainless Steel | H.S. Code: | 8428101090 |
Drive System: | VVVF Drive Control | Traction Machine: | Gearless Traction Machine |
Name: | Panoramic Glass Elevator | Shape: | Diamond |
Main Power: | AC 380V 3PH 50HZ | Lighting: | 220V 1PH 50HZ |
High Light: | commercial glass elevators,exterior glass elevator,Diamond Shape Panoramic Glass Elevator |

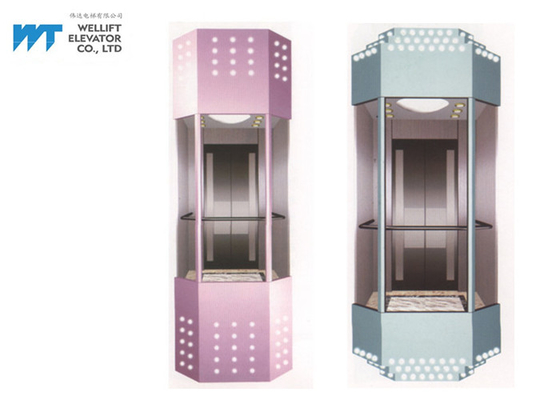

Diamond Panoramic Glass Elevator with 180 degree Sightseeing
The panoramic elevator cabin could be 180 degree Sightseeing styles satisfying your different individualized requirements. VVVF drive control and dual 32-bit CPU closed-loop vector control technology, automatically generating optimal speed curve according to human physiology, which can make acceleration, deceleration and braking more smoothly, provide a more comfortable running. This panoramic elevator could be widely applied in different hotel and commercial building.
Standard Specification of Observation Elevator
Load(Kg) | 630,750, 1000, 1150, 1350, 1600 |
Speed(m/s) | 1.0, 1.5, 1.75, 2.0 |
Most Stops | 36 |
Max. Journey | 100m |
Control System
Wellift passenger elevator adopts the globally recommended VVVF Integrated Control System.
WELLIFT integrated drive controller is the new generation of state-of-the-art elevator-specific control and drive device. With full consideration of the safety & reliability of elevator; inherent characteristic of elevator operation and specific feature of potential energy load for elevator, this series elevator integrated drive controller adopt advanced technology of frequency control of motor speed and intelligent elevator control as well as the integration of control & drive of elevator to make the further improvement of the product performance, easy-to-use property and cost efficiency.
Model No.: Integrated drive controller
Elevator Traction Machines
Wellift passenger elevator adopts permanent magnet synchronous motor gearless drive with conversion efficiency reaching 100%, applies high permanent magnet materials, realizes miniaturization and high efficiency of the system free of gear oil and maintenance and electromagnetism interference, low noise.
Model No.: V8 PM Gearless traction machine
Traction ratio: 2:1
Loading Capacity: 630kg - 1600kg
Elevator Door System
Applied with VVVF control technology, running curve of door operator can be adjusted discretionarily, running safely and comfortably, low noise and credibility quality, easy to be adjusted and installed.
Opening Type: Center Opening and Side Opening
Elevator Safety Components
Speed governor, safety gear, oil buffer, guide shoe and rope brake ,all safety components parts are carefully selected from top-grade professional factories, fully comply with GB7588-2003 standard ( equivalent to the EN81-1: 1998 standard), featuring professional product design, high quality, passing national type testing certification.
No matter on design, manufacture, spare parts, technique or other sides, industrial standard is strictly followed, the same as other leading brands, even exceeding them on some details. All main parts are carefully selected from top-grade professional factories guaranteed by ISO9001 Quality Control System; the performance of complete machine is unquestionably perfect.
Please feel free to contact us if you have any need for our products. Also you can visit our company website www.wellift.com to download product catalogues.
Contact Person: Mr. Wu
Tel: 0086 592 5166666
Fax: 0086-592-5161666
