Product Details:
|
| Name: | Shopping Mall Escalator | Drive Type: | PLC Or VF (Optional) |
|---|---|---|---|
| Rated Speed: | 0.5m/s | Inclination: | 30°, 35° |
| Handrail UVC Sterilization: | Optional | Main Power: | 380V 3PH 50HZ |
| Type: | Indoor Or Outdoor With Shelter Above | Warranty: | 18 Months |
| High Light: | Anti COVID 19 UVC Sterilization Lamp,Passenger Escalator UVC Sterilization Lamp |
||

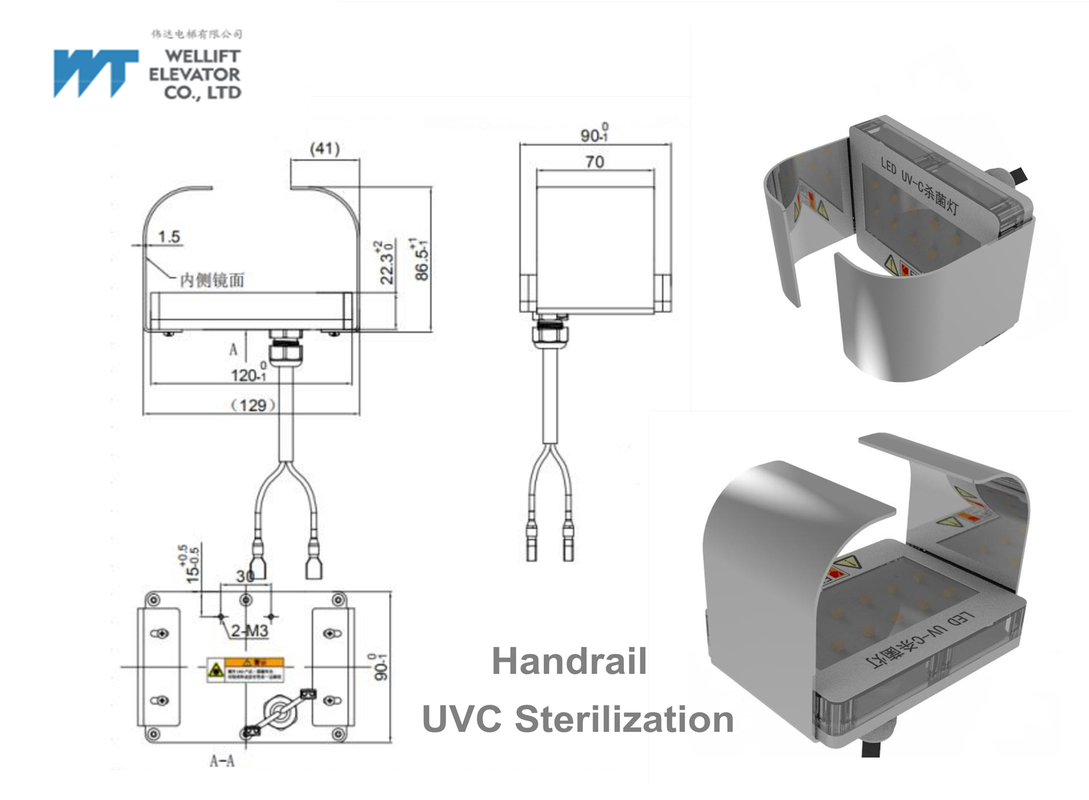

This UVC sterilization lamp is especially design for escalators and moving walks, which sterilizes for handrail. So, this lamp must be installed inside the enclosed space of escalators' and moving walks'.
Any other applications are not our initial and prospective proposals, which will lead to the misuse of the lamp. UVC sterilization lamp cannot be used for sterilization for humans or animals, and it's not suitable for household room illumination. Please feel free to contact us if you have any need for this product.
Our W8 serial escalator is the result of perfect design and the latest technology, it features as low noise, durable in use, convenient repair etc. We strictly implement ISO9001 Quality Control System, and each W8 escalator is carefully manufactured and tested for good quality.
Features:
1. High efficiency and energy saving up to 50%.
2. The new-generation frequency-conversion power module features.
3. Lower power consumption and faster speed.
4. Smart function is activated automatically.
5. Stainless steel apron board cover plate, rail system and guide area, shows fashion and beautify building and ensure the safety of passengers at the same time.
WELLIFT W8 serial escalator has unbeatable advantages on safety, operation appearance and energy saving in this trade. It is applicable for hotels, office buildings, shopping center, etc with good quality and competitive price.
Standard Specification of W8 serial escalator
| Target market: | Shopping mall, Commercial Building, Hospital, Hotel etc. |
| Step width | 600mm, 800mm, 1000mm |
| Speed(m/s) | 0.5 |
| Inclination | 30°, 35° |
| Max. Vertical rise | ≤8000mm |
| Operating environment | Indoor or outdoor with Shelter |
Superior Performance of W8 serial escalator
| Safety | |
|
“Safety the first" is the basic guideline of W8. The design, manufacture and installation all reach or exceed GB16899-2011 and EN115 "Safety rules for the construction and installation of escalators and passenger conveyors”. Standard models possess safety equipments as following:
|
|
| Reliability | |
| 1 | W8 runs smoothly, comfortable and safe to take. It is the perfect combination of ideal design solution and up-to-date technical achievement |
| 2 | The truss are made of special bar sections and rectangle steel tube, with stress relieving treatment, so that to be solid, durable and nondeformable |
| 3 | The drive device adopts the most advanced technology of German FRANDER Company which has the features of high efficiency, uniform operation and low noise |
| 4 | The control system adopts Japanese new-generation PLC technology, which can perform function setting and trouble self-diagnose, the remote monitoring interface can be added if necessary |
| 5 | The steps which formed from High-strength whole piece die-cast aluminum or stainless steel, and high-quality handrail guarantee the handsome appearance, safety and durability of escalator. |
| 6 | Following ISO9001 Quality Control System, each W8 escalator is manufactured and tested carefully to be of good quality |
| New Standard Configurations | |
|
Automatic oil lubricator: It can automatically lubricate all essential elements periodically, lubricating time can be set depending on real working conditions. This device can greatly lighten the work load of routine maintenance, as well as prolong the service life of transmission gear. |
|
|
Automatic trouble display: The trouble display screen in control cabinet of escalator will indicate the abort situation with 2-digit codes, so as to shorten needed time for diagnosing and repairing. |
|
|
Remote monitoring interface After adding this interface in computer, the managing center can use remote measuring device to monitor every escalator in building. All operating parameters would be monitored and recorded for efficient control; or with remote system in WELLIFT maintenance department, we can monitor all conveying system and provide prompt service to customer. |
|
| Optional Function | |
|
Photoelectric Induction System W8 equips photoelectric induction system on upper and bottom inlets/outlets, which can realize the functions of self start and self stop. |
|
|
VF drive system: Equipped with advanced frequency transformer and encoder, combined with photoelectric inductor, W8 can automatically control speed according traffic flow with 60% energy saving and 80% less of peak current. |
|
| Elegant Design | |
|
|
| Decorative Selection | |
|
|
WELLIFT V8 serial escalators fully apply the novel materials and the advanced domestic and overseas technology for design and manufacture. The escalators have the consummate structure, elaborate stairway, delicate belt, attractive outline, they are widely applicable for large passenger flow areas such as the shopping centers, supermarkets, subways, and airports etc. it adds a charming mobile view for vast constructions.
Please feel free to contact us if you have any need for our products. Also you can visit our company website www.wellift.com to download product catalogues.
