|Intelligent Access:||IC Card||IC Card:||Optional Function|
|Usage:||Passenger Elevator / Lift||Machine Room:||Machine-room Or Machine-roomless|
|Traction Type:||Gearless Traction||Cabin Material:||Stainless Steel 304|
|Control:||AC VVVF Control||Lighting:||220V 1PH 50HZ|
|Power:||380V 3PH 50HZ||H.S. Code:||8428101090|
3.0m/S Luxury Passenger Elevator,
IC Card Access Passenger Elevator,
750kg electric passenger lift

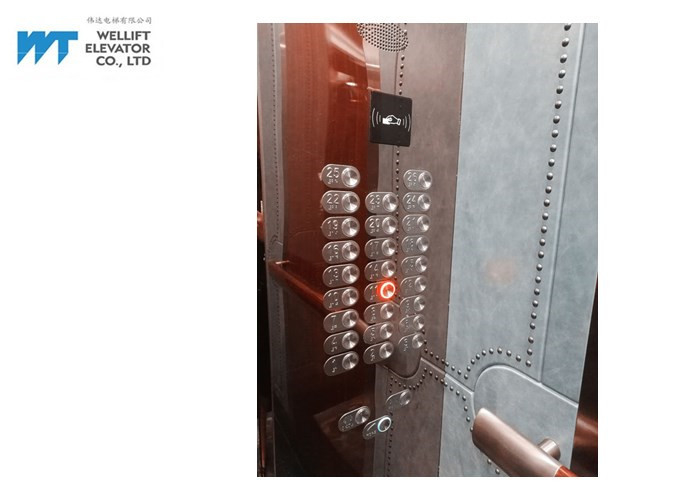

Intelligent IC card system is optional function of Passenger elevator. IC card can be configured according to user requirements, IC card can execute access management for elevator, while effectively protects the safety of vast residents and improves the safety of the building management.
The access control card we choose is "MIFARE". MIFARE is the most widely installed contact less smart card technology in the world,MIFARE card has 16 disk partitions. The first partition is usually used as the directory of other partitions. And the left 15 partitions are used to store the data. Among these 15 partitions, we use one partition to input our elevator program. You can input other program into the remained partitions.
Standard Specification of passenger elevator:
|Target market:||Commercial & Residential Building, Hospital, Hotel|
|Load(Kg)||400, 550, 750, 900, 1000, 1150, 1350, 1600|
|Speed(m/s)||1.0, 1.5, 1.75, 2.0, 2.5, 3.0, 3.5, 4.0|
Wellift passenger elevator adopts the globally recommended VVVF Integrated Control System.
WELLIFT integrated drive controller is the new generation of state-of-the-art elevator-specific control and drive device. With full consideration of the safety & reliability of elevator; inherent characteristic of elevator operation and specific feature of potential energy load for elevator, this series elevator integrated drive controller adopt advanced technology of frequency control of motor speed and intelligent elevator control as well as the integration of control & drive of elevator to make the further improvement of the product performance, easy-to-use property and cost efficiency.
Model No.: Integrated drive controller
Rated Capacity: 4.7 KVA - 50 KVA
Rated output current: 6.2A – 65A
Matching motor: 2.2KW – 30KW
Elevator Traction Machines
Wellift passenger elevator adopts permanent magnet synchronous motor gearless drive with conversion efficiency reaching 100%, applies high permanent magnet materials, realizes miniaturization and high efficiency of the system free of gear oil and maintenance and electromagnetism interference, low noise.
Model No.: V8 PM Gearless traction machine
Traction ratio: 2:1
Loading Capacity: 400kg - 1600kg
Speed Range: 0.5m/s - 4.0m/s
Sheave groove No.: 4 / 5 / 6 / 7
Elevator Door System
Applied with VVVF control technology, running curve of door operator can be adjusted discretionarily, running safely and comfortably, low noise and credibility quality, easy to be adjusted and installed.
Elevator Safety Components
Speed governor, safety gear, oil buffer, guide shoe and rope brake ,all safety components parts are carefully selected from top-grade professional factories, fully comply with GB7588-2003 standard ( equivalent to the EN81-1: 1998 standard), featuring professional product design, high quality, passing national type testing certification.
No matter on design, manufacture, spare parts, technique or other sides, industrial standard is strictly followed, the same as other leading brands, even exceeding them on some details. All main parts are carefully selected from top-grade professional factories guaranteed by ISO9001 Quality Control System; the performance of complete machine is unquestionably perfect.
Wellift Special cabin design
The cabin and landing door of V8 passenger elevator have been heightened with special design:
1. cabin height can be increased from standard 2.3m to 2.6m;
2. Landing door height can be increased from standard 2.1m to 2.2m
The promotion on the standard greatly broadens the space and improves the comfortable feeling of the elevator, the lobby hall looks more noble, upgrading the building’s grade and displaying the host’s personality as well.
Please feel free to contact us if you have any need for our products. Also you can visit our company website www.wellift.com to download product catalogues.
