320Kg Home Machine Room Less Elevator 4 Persons Low Noise Saves Building Space

320Kg Home Machine Room Less Elevator 4 Persons Low Noise Saves Building Space
320Kg Home Machine Room Less Elevator 4 Persons Low Noise Saves Building Space 320Kg Home Machine Room Less Elevator 4 Persons Low Noise Saves Building Space

Large Image :  320Kg Home Machine Room Less Elevator 4 Persons Low Noise Saves Building Space

Product Details:
Place of Origin: China
Brand Name: WELLIFT
Certification: Special Equipment Type-examination Certificate
Model Number: V3
Payment & Shipping Terms:
Minimum Order Quantity: One Unit
Price: USD 14000---USD20000 per unit
Packaging Details: Export package
Delivery Time: 45 work days
Payment Terms: T/T, L/C
Supply Ability: 1000 Unit per month

320Kg Home Machine Room Less Elevator 4 Persons Low Noise Saves Building Space

Description
Usage: Machine Room Less Elevator Standard Cabin: Hairline Stainless Steel
Standard COP: Hairline Stainless Steel Main Power: 380V Or 220V
Control: AC VVVF Control Loading: 320kg - 400kg
Button: Push Touch Button Safety System: Safety Gear, Buffer, Speed Governor Etc.
Warranty: 18 Months
High Light:

home lift elevator

,

residential elevator lift

,

320Kg Home Machine Room Less Elevator



320kg Home Machine Room Less Elevator with Low Construction Costs



As a professional elevator manufacturer in China, we manufacture a complete line of standard and customized elevator systems.Wellift villa elevator without machine room, it saves building space and greatly reduces building cost.



Product Features

  • Machine roomless design saves construction cost
  • Specially designed car sling with 2:1 roping
  • VVV drive, micro-controller, smooth and comfortable
  • 220V or 380V specialized motor which is more professional and effective
  • Special traction machine bracket fixed on guide rail that assures no pressure on shaft wall
  • Excellent at energy saving with simple outer looking and vibration proof



Key Components



1. Elevator Traction Machines

Special purpose PM gearless traction machine for villa elevator, the motor has Ф240 wheel diameter and its unique structure lowered the total height of the motor and reduces the overhead requirement.



2. Elevator Door System

Adopts VVVF technology and it ensures noiseless and smooth operation.



3. Control System adopts Full Serial Villa Elevator Controller

Adopts FPGA+DSP control platform with strong data processing capacity, anti-interference design, safety protections for both elevator control and drive system control, which ensure the super reliability and stability of our home elevator.

2.2kw low power is specially designed for villa elevator.



4. Elevator Safety Components

Speed governor, safety gear, oil buffer, guide shoe and rope brake ,all safety components parts are carefully selected from top-grade professional factories, fully comply with GB7588-2003 standard ( equivalent to the EN81-1: 1998 standard), featuring professional product design, high quality, passing national type testing certification.

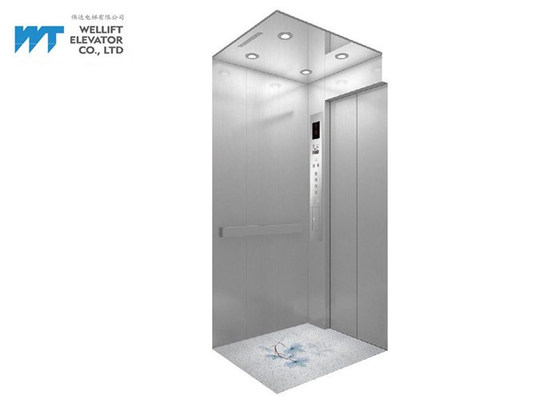

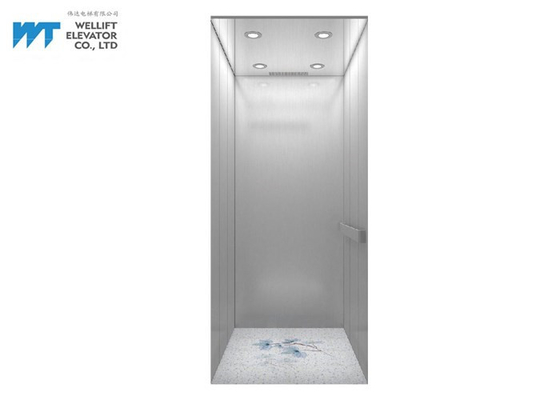

Cabin Design



Wellift residential home elevators or villa elevator cabin uses new materials, new craft decoration;

It’s fashionable, beautiful and useful. Excellent choices for users, that ranges from various painted steel,Mirror stainless steel, hairline stainless steel, vibration stainless steel, etching stainless steel, etc.

You may choose the finishing matches that suit the building design.





Interface



Wellift residential home elevators or villa elevator ergonomic COP Design with high resolution convenience for operation & better sensitivity ensue the entire feeling comfortable.





Standard Design



Wellift standard cabin is of simple and fashionable design, which is harmonious with various building styles.
1. Three types of landing door frame are available to suit different building designs.
2. Cabin wall is with optional designs. Materials are painted steel, stainless steel, mirror steel etc. for choice.
3. Ceiling is optional in standard styles.
4. The platform is high-quality plastic floor, or reserve space to lay down stone plate according to client's favor.
5. Optional color patterns of landing doors



The car and landing door of residential home elevators or villa elevator have been heightened with special design:


1. The car has been lengthened from standard 2.0m to 2.1m;
2. The landing door has been lengthened from standard 1.9m to 2.0m.

3. Dimension of cabin and opening door can be customized according to the actual site condition.



Function for Residential Home Elevators and villa elevator

 B Standard Function  O Optional Function
Safety Features
Fault Detection
 B Motor Overheating Protection  B Forbidden Switch of Door Opening
 B Subsection Inspection of Safety Circuit  B Speed Governor Tension Safety Contacts
 B Main Power Switch Box  B Car Door Contacts
 B Running Hours Cumulating  B

Car Lighting Main Switch Box Main Fuse

Inside of Controller Box

 B Car Positioning Switch  B Pit Brace Rod Contacts
 B Car Emergency Stop Switch--Car Top  B Car Top Brace Rod Contacts
 B Car Emergency Stop Switch--Pit  B Electrical Brake Releasing Function
 B Safety Gear Safety Contact  B Car Emergency Light
 B Speed Governor Safety Contacts  O ARD--- Automatic Rescue Device
 B Main Switch Inside Controller Box  B Emergency Call(One Digit Dial Telephone)
Information Function Comfort Functions
Landing Information Display Entering & Exit Cabin
 B Landing Call Indicating Light  B Door Opening Button
 O Travelling Direction Indicators at Every Floor, Floor Number Display  B Door Closing Button
 B Light Curtain
Inside Cabin Information Display Comfortable Running
 B COP Call Indicating Light  B Car Lighting
 B Overload Symbol& Buzzer  B Fan
 B Car Position Display  O Background Music
 B Travelling Direction Indicators  O Voice Announcer
CCTV Camera Misusage Protection
 B Door Zone Indicating Light  B Calling Cancellation by 2 Times Button Pressing on COP
 B Running Times Accumulating  B Viscous Button Monitoring
 B Normal Fault Signal  B Opposite Direction Calling on COP
Control Functions
Prior/Special Service Functions / Special Functions
 B Landing Call Forbidden  B Testing Running
 B Auto Door  O Functions for Disabled (Braille Button, Voice Announcer)
 B Door Opening and Closing Timing at Each Floor, Unified Regulation  B Re-Opening Door When Landing Call
 B Inspection Running  O Through Opening Door
 B Emergency Returning  O Optional Door is Available (If It is Through Opening)







Please feel free to contact us if you have any need for our products. Also you can visit our company website www.wellift.com to download product catalogues.
