Product Details:
|
| NAME: | Residential Home Elevators | Machine Room: | Machine Roomless |
|---|---|---|---|
| Main Power: | 380V Or 220V | Door Opening: | Center / Side Opening |
| Cabin Design: | Optional | Capacity: | 320kg Or 400 Kg |
| Usage: | Private House, Villa, Small Residential Building, Etc. | Speed: | 0.4m/s - 1.0m/s |
| H.S. Code: | 8428101090 | Controller: | VVVF Integrated Controller |
| High Light: | SS304 Villa Elevator,400kg Villa Elevator,320kg Residential Home Elevators |
||

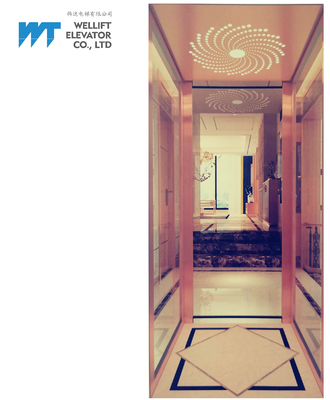

Luxury Villa Elevator car well adopts rose gold mirror stainless steel with safety laminated glass design modern and simple
Elevator cabin of Home lifts and Villa Elevator, we adopt thickness 1.5mm high quality 304 stainless steel sheets as standard, rose gold mirror stainless steel and safety laminated glass are optional car well, thickening stainless steel plate makes passenger elevator run more smoothly and safety. VVVF Integrated Controller ensure the smooth elevator travel condition, sensitive reaction, the most comfortable start through adjusting the current and phase according to the actual load of the car, up / down speed. Our high quality villa elevator is compact and economic elevator for the villa-like and multistoried buildings, and ideal lifting vehicle for old man, patient and disabled people.
Standard specification of Residential Home Elevators and villa elevator
| Target market: | Villa and high grade residential building |
| Load(Kg) | 320,400 |
| Speed(m/s) | 0.4 |
| Most Stops | 6 |
| Max. Journey | 25m |
Product Features
Key Components
1. Elevator Traction Machines
Special purpose PM gearless traction machine for villa elevator, the motor has Ф240 wheel diameter and its unique structure lowered the total height of the motor and reduces the overhead requirement.
2. Elevator Door System
Adopts VVVF technology and it ensures noiseless and smooth operation.
3. Control System adopts Full Serial Villa Elevator Controller
Adopts FPGA+DSP control platform with strong data processing capacity, anti-interference design, safety protections for both elevator control and drive system control, which ensure the super reliability and stability of our home elevator.
2.2kw low power is specially designed for villa elevator.
4. Elevator Safety Components
Speed governor, safety gear, oil buffer, guide shoe and rope brake ,all safety components parts are carefully selected from top-grade professional factories, fully comply with GB7588-2003 standard ( equivalent to the EN81-1: 1998 standard), featuring professional product design, high quality, passing national type testing certification.
Function for Residential Home Elevators and villa elevator
| B | Standard Function | O | Optional Function |
| Safety Features | |||
| Fault Detection | |||
| B | Motor Overheating Protection | B | Forbidden Switch of Door Opening |
| B | Subsection Inspection of Safety Circuit | B | Speed Governor Tension Safety Contacts |
| B | Main Power Switch Box | B | Car Door Contacts |
| B | Running Hours Cumulating | B |
Car Lighting Main Switch Box Main Fuse Inside of Controller Box |
| B | Car Positioning Switch | B | Pit Brace Rod Contacts |
| B | Car Emergency Stop Switch--Car Top | B | Car Top Brace Rod Contacts |
| B | Car Emergency Stop Switch--Pit | B | Electrical Brake Releasing Function |
| B | Safety Gear Safety Contact | B | Car Emergency Light |
| B | Speed Governor Safety Contacts | O | ARD--- Automatic Rescue Device |
| B | Main Switch Inside Controller Box | B | Emergency Call(One Digit Dial Telephone) |
| Information Function | Comfort Functions | ||
| Landing Information Display | Entering & Exit Cabin | ||
| B | Landing Call Indicating Light | B | Door Opening Button |
| O | Travelling Direction Indicators at Every Floor, Floor Number Display | B | Door Closing Button |
| B | Light Curtain | ||
| Inside Cabin Information Display | Comfortable Running | ||
| B | COP Call Indicating Light | B | Car Lighting |
| B | Overload Symbol& Buzzer | B | Fan |
| B | Car Position Display | O | Background Music |
| B | Travelling Direction Indicators | O | Voice Announcer |
| CCTV Camera | Misusage Protection | ||
| B | Door Zone Indicating Light | B | Calling Cancellation by 2 Times Button Pressing on COP |
| B | Running Times Accumulating | B | Viscous Button Monitoring |
| B | Normal Fault Signal | B | Opposite Direction Calling on COP |
| Control Functions | |||
| Prior/Special Service Functions / Special Functions | |||
| B | Landing Call Forbidden | B | Testing Running |
| B | Auto Door | O | Functions for Disabled (Braille Button, Voice Announcer) |
| B | Door Opening and Closing Timing at Each Floor, Unified Regulation | B | Re-Opening Door When Landing Call |
| B | Inspection Running | O | Through Opening Door |
| B | Emergency Returning | O | Optional Door is Available (If It is Through Opening) |
Please feel free to contact us if you have any need for our products. Also you can visit our company website www.wellift.com to download product catalogues.
