Product Details:
|
| Product Name: | Stretcher Passenger Elevator | Control System: | AC VVVF Elevator Control System |
|---|---|---|---|
| Traction Machine: | PM Gearless Traction Machine | Machine Room: | Machine-room Or Machine-roomless |
| Speed: | 1.0m/s To 4.0m/s | Load: | 1000kg |
| Power Supply: | 380V 3PH 50HZ / 220V 1PH 50HZ | H.S. Code: | 8428101090 |
| Cabin Material: | Stainless Steel Finish | Origin: | China |
| High Light: | high speed passenger,elevator gearless traction elevator,Stretcher Luxury Passenger Elevator |
||
Stretcher Passenger Elevator with gearless machine for residential building design
Safe and convenient, customized stretcher elevator
Wellift stretcher elevator is specially designed for high-rise residence. It satisfies the needs of emergency patients' delivery. It can bear various kinds of heavy stretchers. It is smooth and comfortable in running with bright and broad cabin. It not only has ordinary passenger-transport functions, furthermore, can contain stretcher. Meanwhile, it is convenient for people to carry large furniture.
Standard Specification of 1000kg Stretcher Passenger Elevator
| Model | V8 |
| Rated capacity(kg) | 1000 |
| Number of passenger | 13 |
| Rated speed (m/s) | 1.0, 1.5, 1.75, 2.0, 2.5, 3.0, 3.5, 4.0 |
| Machine room Position | Above shaft |
| Type of car door | Auto side opening door with VVVF drive |
| Car Dimension (W X D X H ) | 1100mm width x 2100mm depth x 2600 mm High |
| Landing Doors Entrance (W X H) | 900mm width x 2200 mm High |
| Overhead(mm) | ≥4600,4750,4860,5000,5200,5600,5950,6350 |
| Pit Depth(mm) | ≥1450,1600,1800,2150,2450,2600,3100,3850 |
| Shaft Size (Width X Depth) | 1900mm width x 2600 mm Depth |
Control System
Wellift passenger elevator adopts the globally recommended VVVF Integrated Control System.
Elevator Traction Machines
Wellift passenger elevator adopts permanent magnet synchronous motor gearless drive with conversion efficiency reaching 100%, applies high permanent magnet materials, realizes miniaturization and high efficiency of the system free of gear oil and maintenance and electromagnetism interference, low noise.
Elevator Door System
Applied with VVVF control technology, running curve of door operator can be adjusted discretionarily, running safely and comfortably, low noise and credibility quality, easy to be adjusted and installed.
Elevator Safety Components
Speed governor, safety gear, oil buffer, guide shoe and rope brake ,all safety components parts are carefully selected from top-grade professional factories, fully comply with GB7588-2003 standard ( equivalent to the EN81-1: 1998 standard), featuring professional product design, high quality, passing national type testing certification.

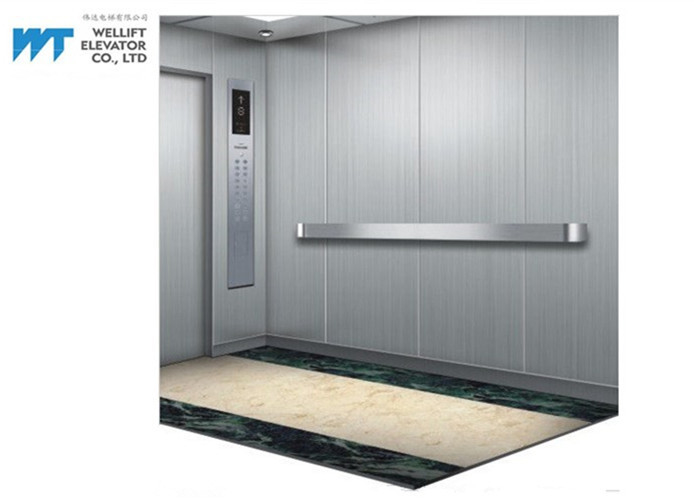

Wellift Special cabin design
The cabin and landing door of V8 passenger elevator have been heightened with special design:
1. cabin height can be increased from standard 2.3m to 2.6m;
2. Landing door height can be increased from standard 2.1m to 2.2m
The promotion on the standard greatly broadens the space and improves the comfortable feeling of the elevator, the lobby hall looks more noble, upgrading the building’s grade and displaying the host’s personality as well.
Please feel free to contact us if you have any need for our products. Also you can visit our company website www.wellift.com to download product catalogues.
