Product Details:
|
| Scope: | Window Type | Machine Room: | Without |
|---|---|---|---|
| Load: | ≤200KG | Speed: | ≤1.0 M/S |
| Control Type: | AC Single Speed And Frequency Control | Shaft: | Without Shaft (100kg To 300kg) |
| Cabin Material: | Painted Steel, Stainless Steel, Etc | Door Direction: | Automatic Up/ Down |
| Warranty: | 18 Months | HS Code: | 8428109000 |
| High Light: | food dumbwaiter lift,commercial dumbwaiter |
||
Automatic opening door Service lifts with Max. load 200kg Window type
Service lifts and dumbwaiter are adopt automatic opening door with advantage design as follows:
Features
1. Unique door vane (patented design) is not affected by car level accuracy, so the door is able to open smoothly within the leveling range of ±30mm.
2. Door-motor and car door is driven via gear (patent design) and equipped with tightening device, the structure is simple and reasonable.
3. The selective assembly of infrared curtain enhances the safety and reliability of lift door.
Advantages
1. Door vane detacher ensures cam detaching at different points during door opening/closing, as well as the alignment of car door an landing door
2. The adoption of external unlocking device is benefit for getting out the inside goods with simple operation in case of power failure.
3. The site debugging-free integrated electrically locking door-motor system is easy and convenient for installation which greatly improves the installation quality and speed
Tz01:
Door opening direction: Automatic up/ down centre-opening door.
Application scope: Load ≤200kg, window type service lift, both AC single speed and frequency control.
Dumbwaiter elevator / Service Lift Standard Configurations
|
1. |
The control system adopts PLC control, serial communication and frequency control (Optional) |
|
2 |
Equipped with service lift-use traction machine |
|
3 |
Special door slide technology introduced from Italy |
|
4 |
New generation of electromechanical integrated hall door lock-master/slave double lock (imported) together with electric locking system is more safe and reliable |
|
5 |
All door system components, such as landing door, jamb and landing door device, are assembled tested in factory before delivered as a complete system, as well as the car door(optional)and door system |
|
6 |
Equipped with service lift-use water-and oil-proofing buttons and digital calling board |
|
7 |
Elevator steel frame is made of high corrosion-resistant hot-dip galvanized sheet of one-step forming structure which increases the structural strength of the elevator in addition to anti-corrosion, and is easier and more convenient for installation |
|
8 |
Equipped with service lift-use rail -cold-drawn T-type solid rail |
|
9 |
Door opening method: electric unlocking and manual up/down bi-parting door. |
Perfectness Improvement
|
1. |
New generation of door-motor system together with wholly delivered landing door system after factory assembling and testing ensures high installation quality and less failures. |
|
2 |
Water- and oil-proof buttons and digital calling board is more suitable for special working environment of service lift and dumbwaiter lift. |
Control system function for Dumbwaiter elevator / Service Lift
|
Calling landing section |
|
Water- proof and oil-proof calling board and digital display panel Specially designed for working environment of service lift and dumbwaiter lift. |
|
Sweet arrival prompt--Friendly arrival bell |
|
Electrically locking function The station calling board is equipped with electric lock for opening /closing the control circuit of lift |
|
Calling response function After pressing the calling button, the digital button LED for the called floor will light up. And the memory will be canceled and the LED will be off after arrival |
|
Control section |
|
Fault display function Display the diagnosed fault via corresponding code. |
|
Contactor adhesion protection function If the contactor coil fails to break after power loss, then prevent it from rerunning for safety purpose |
|
Door opening/closing indication function The landing door opens after the lift reaches the floor, and the status is displayed in digital to prompt the lift is operating in the current floor. |
|
Running fault protection function The lift stops after exceeding normal running time for 10 seconds to avoid burning of motor. |
|
Running direction display function The running direction is displayed via Up/Down flashing arrow. |
|
Door-motor section |
|
Equipped master/slave double lock function for landing door device as well as locking detection function |
|
Electric locking door-motor system function Avoid contact of door vane during operating, thus to improve the safety and reliable of lift |
|
Electric unlocking of hall door via door-motor system Push the opening button for each floor to unlock electrically after the lift reaches the floor |
|
Lift structure |
|

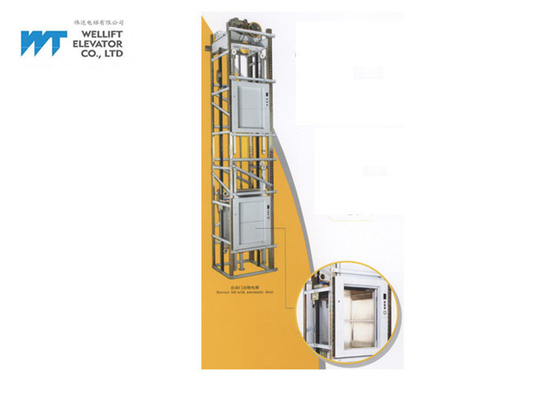

The service lift with capacity of 100kg-300kg is with frame structure. Machine room or well is not required |
Our Dumbwaiter elevator and Service Lift are of high configurations and complete functions, and are built with dependable quality to last a lifetime. We invite you to compare this type elevator to any competitor, and you will find it superior in design and quality.
Please feel free to contact us if you have any need for our products. Also you can visit our company website www.wellift.com to download product catalogues.
